Safe Construction & Protection Level Ratings

Even the most sophisticated anti-theft features are ineffectual when used by a safe with a weak foundation.

The first line of defense for any security safe's construction is its door and walls. One substantially thick steel door and five thick steel walls are the only fundamental means of preventing a determined criminal from gaining entrance. Through clever and immoral marketing, safe builders have mastered the ability to bury this plain and simple truth in a barrage of technical terminology and captivating graphs.

Wall and Door thickness cuts to the core of a high security safes construction and core ability to protect. This should always be your number one concern when deciding on any safe.

Below you'll find a summary of industry recognized safe steel thickness ratings and the level of real world protection you should expect from each.

False Security Safe Construction Ratings

No Recognized Rating - Nearly half of all top selling safe brands fall into this category. The only rating they bear, if any, is based on a system the manufacturer creates on their own that has no correlation to any industry recognized standard. This is an avoidance tactic used to mask safes that provide an unacceptable level of protection. Avoid these safes.

Theft Resistant - This rating simply acknowledges that the safe has a lock on it, no other protection level is guaranteed or implied. This type of safe construction provides roughly the same level of protection as a locked file cabinet, which can also carry this same rating.

RSC (Residential Security Container)  (TL-5) Rating - This is a UL rated container that certifies the "safe" is capable of withstanding a beating by one man wielding a hammer and small crowbar for up to five minutes. Another way of putting it...One man armed with only a hammer and crowbar can generally gain access to these home security safes in just over five minutes. Safes bearing this safe construction rating make up the remaining half of top selling safe brands, with very few exceptions. Do not put anything of value in these safes.
"Safes" or containers of this type tend to list their steel thickness by gauge. Common gauges range from 10 to 20 (see the chart above to see how incredibly thin this really is). Due to the high cost of steel, many of these same companies will combine the measurement of their steel plating thickness with the thickness of their drywall fireproofing panels, reporting one combined measurement in a manner that intentionally sways the uninformed buyer into assuming the quoted wall or door thickness is all solid steel or a similar protective material. This one underhanded trick has met with such resounding success it has been adopted in various forms by nearly every major safe builder. The easiest way to spot these counterfeit safes when uncertain about the reported steel plating thickness is to check the safes weight. A 60 inch tall false safe will weigh between 300 and 800 lbs with fire protection. True security safes of this size start at 600 lbs without fire protection and jump up into the 1500+ pound range with fire protection.

True Security Safe Construction Ratings

Class B Rating - Weighing in at 2 to 4 times the mass of an RSC safe, Class B security safes are a vast step up in protection. A Class B high security safe is equipped with a 1/2 inch solid steel door and 1/4 inch solid steel walls on all 5 sides. At it's core, this is a safe with a substantial foundation, one capable of easily resisting hours of brute force abuse by amateur criminals.
These safes will generally be capable of withstanding entry attempts by semi-skilled criminals for an hour or more depending largely on the types of tools used to attempt entry. Security safes outfitted with additional burglary countermeasures will withstand even skilled attackers for sustained periods.

Class C Rating - Double the weight of a Class B with double the steel thickness all around. Class C security safes are yet another major upgrade in protection with a 1" steel door and a 1/2" steel body. A Class C security vault provides roughly double the penetration protection and tend to have roughly the same amount of added burglary countermeasures as class B rated security safes.

Class F (TL-30) rating - These security vaults have been tested to withstand attack for at least 30 minutes by a group of professional safecrackers armed with blueprints of the safe using the full gamut of tools and attack methods.
The steel on Class F security safes often incorporates additional layers of varying metal aimed at further slowing entry attempts.
In addition, Class F high security safes commonly employ additional features to further slow down professional attackers. A whole array of measures and counter-measures come into play at this level of the safe vs. safecracker game and safe builder defense methods vary widely in their approach and design.

Class M rating - The M rating is the highest non-custom security safe rating Brown Safe offers and one of the highest protection levels available anywhere. M rated security safes are currently only manufactured by Brown Safe. To learn more about this rating, click here.

B-Rate Protection Level - Features

      1/2 inch solid steel door

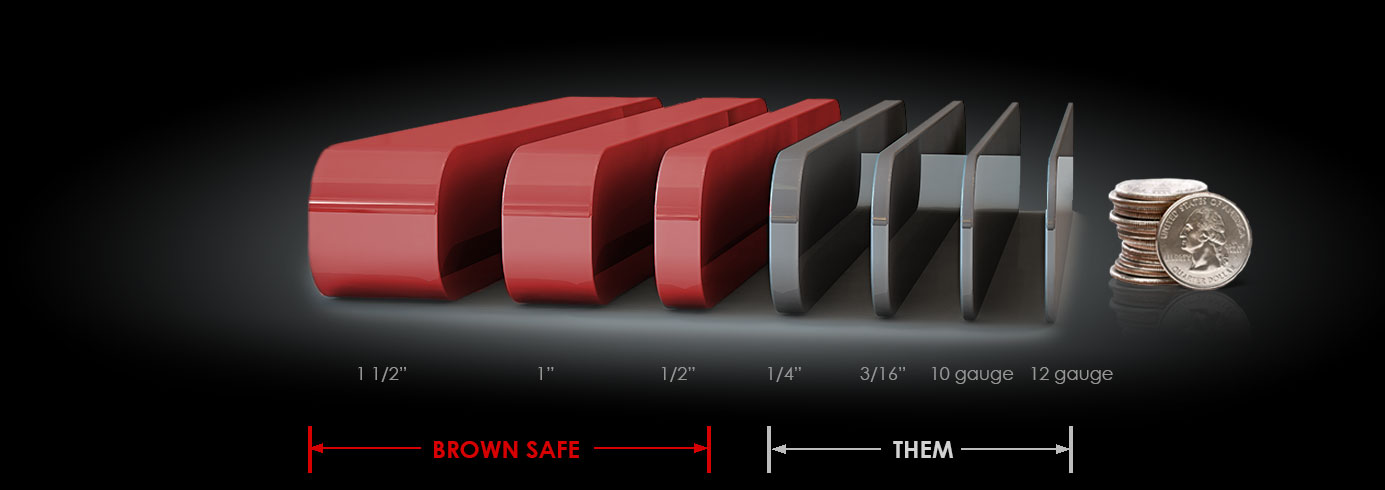

It starts with steel. A safe is really only as strong as the material used to construct it.
And a safe's door is usually the weakest point of entry, as it is vulnerable to the standard methods of prying, cutting, and drilling to gain access to the interior of the safe. We negate this weakness by doubling the amount of door steel to a full half inch. The amount of steel in our base model provides substantially more burglary protection than the highest-rated safes by the majority of top selling manufacturers. For proof of this click here...

To learn more about protection ratings and the need for solid steel...click here

      1/4 inch thick solid steel body construction

All Brown Safes are constructed using a highly reinforced interlocking six-sided construction method. All wall, ceiling, and floor intersections are bound both inside and outside with high strength arc welds. This includes seamless welds that run along all outside seams creating a fully enclosed armor casing.
The five walls of this base unit are comprised of quarter inch solid plate steel. Again, this is substantially more protection than the majority of top selling safe models.
Click here to see a competitor comparison.

      Fire Protected for 90 min. at 1700°

The safe is made fire worthy by encasing all walls within 2 ½ inches of poured composite amalgamate encasement and the door of the safe receives a 2 inch layer of the composite material. While it's impossible to create a truly "fireproof" safe, this is the maximum level of fire protection available and provides an additional benefit by increasing the burglary shielding.
To learn more about the composite encasement process, click here.

     Flush door frame design with overbuilt spread resistant doorframe

The door frames on most safes are normally vulnerable to prying and side drilling. Not the case with Brown Safe door frames that contain excessive reinforcement in this area. Our safes incorporate a box in frame design that carries quadruple the body steel thickness at the door's frame.
In addition, the solid steel reinforced door interlocks within the door frame, creating a flush surface of solid steel that prevents the insertion of any pry bar or hydraulic leverage mechanism.
To top it off, a hardened steel internal crossbeam positioned at a 45 degree deflective angle runs along the entire door bolt frame to repel side door drill attack attempts.

      1 inch laminated, interlocked & double-welded door jamb

A solid steel tongue runs the entire length of the inner door parallel to the hinge. It locks in securely behind the door frame when the door is fully shut interlocking the door and frame tightly together. Once closed and engaged, this jamb coupled with the flush frame design and hardened locking bolts creates a door capable of withstanding extreme forms of attack for extended periods of time. With the inner  jamb in place, any effort spent cutting the doors exterior hinges wastes valuable time for the criminal while gaining them nothing.

      U. L. approved high security Group 2 lock

This commercial rated lock offers quick and convenient access with industrial grade protection. Built by one of the most respected lock makers in the safe world, this is a high use lock designed to provide a century's worth of reliable operation by jewelers and security personnel. This time tested design means ultimate home reliability for you.

      Ball bearing hard plate

This large hard plate rests between the door and the lock creating an additional barrier against penetration attacks. The superior bearing design is comprised of staggered rows of through-hardened ball bearings with a 58Rc hardness rating. The harsh angles and hardness of the bearings act to bind and seize drill bits while the free spinning nature of the bearings prevent a drill bit from gaining a solid drilling surface.

     Double anchor locking bolt carriage design

The locking bolts responsible for securing the door are fastened at two distinct locations along each bolt. Each paired set of solid steel anchors is spaced wide apart for additional support. The carriage anchors are held fast directly to the plate steel door by seamless welds.
This robust method of bolt carriage reinforcement is rarely seen in the safe industry. The majority of safe companies hold their bolts using a single thin carriage anchor, making the safe extremely vulnerable to pry bar and leverage based attacks. Click here for an example of this vulnerable bolt carriage design.

     1 inch thick hardened chrome locking bolts with anti-drive resistance

A solid safe requires solid bolt work, and our bolts deliver. Each case hardened locking bolt runs directly through the carriage anchors. While the locking bolts on most safes terminate just inside the door, each Brown Safe bolt runs over half the length of the door passing directly through the wide set bolt carriage anchors.
While in the locked position, each bolt is equipped with a passive anti-drive mechanism that blocks any attempts to mechanically force the bolt back through the use of wedges, taps, drills, and hammers.

Click here to learn about an unscrupulous "Large locking bolt" gimmick commonly employed by many major safe manufacturers to create the false impression of a robust safe.

      Five active and passive relocking devices

Hardened relocking bolts positioned at key locations throughout the safe act as an end all failsafe against intrusion. If an attempt is made to penetrate the lock, all relocker bolts instantly engage permanently pinning the door and its main bolts solidly in place and making it a near impossibility to get the door open within any reasonable remaining time the criminal may have.
Once relocker bolts have activated, the safe must be opened by a certified locksmith using blueprints supplied by Brown Safe specific to that safe. Without these detailed prints and instructions, it takes numerous hours to gain access to the safe, ensuring the safety of the precious contents within.

      Four 5/8 inch base anchor holes

To best ensure a solid floor connection, all Brown Safes are installed using four massive floor anchors. During installation, these long bolts run through anchor holes in the safes steel floor plate securing the safe firmly to the wood or concrete floor. When anchored to a concrete floor, the thief would have better luck attempting to uproot the entire concrete section around the safe rather than trying to pry the safe from its substantial purchase. When anchored to a wood floors support beam, it would be necessary to remove the entire section of floor including the beam in order to dislodge the safe. These are lengthy major operations that in most instances criminals have neither the time nor resources to perform.

C-Rate Protection Level - Features

     C-Rate safes have all the standard features of the B-Rated safes, plus the following features:

      1 inch solid steel door

With twice the amount of door steel as the B-Rating, C-Rated safes present a substantial protection upgrade.

      1/2 inch solid steel body

The C-Rating also doubles the amount of body steel to a 1/2 inch of solid body thickness. The total protection offered by the increased door and wall thickness is essentially double that of the C-Rating.

      Ball and roller bearing hinges

Twice the steel means a door that's twice the weight. To better accommodate the added mass, we upgrade the door hinges to high load-bearing ball and roller hinges. The result is an exceptionally fortified door with silky smooth operation.

F-Rate Protection Level - Features

     F-Rate safes gain a quarter inch of Ballistic Armor in the door. This armor functions as a hardplate for
      the entire front area of the safe. To learn more about the capabilities of this armor, click here.

     F-Rate safes have all the standard features of the previous protection levels, plus the following:

      1 1/2 inch solid steel door

F-Rated safes weigh in with a door that carries triple the steel thickness of the base rating.

      1/4 of additional Ballistic Armor on door

While only a quarter inch thick, the extreme strength of this added layer provides a substantial increase in protection from penetration attacks. The Ballistic Armor is cable of defeating multiple .50 caliber anti-sniper rounds, a feat no other steel we've tested is capable of performing.
Attempts to penetrate this armor with carbide tipped drill bits also prove fruitless as the armor hardness is an even match to that of the bits.

      1 inch solid steel body

The body of F-Rated safes is also comprised of solid steel plates that are three times the thickness of the standard B-Rate model.

Additional Protection Level Ratings

     We do offer additional non-standard protection levels above and beyond those shown here.

     Please contact us to discuss your specific requirements.

Optional Security Features

     F-Rate safes gain a quarter inch of Ballistic Armor in the door. This armor functions as a hardplate for the
      entire front area of the safe. To learn more about the capabilities of this armor, click here.

      Three-way bolt work with anti-drive

Both upper and lower locking bolts are added to further strengthen the door's ability to deny all attempts to wedge and pry the door open. All bolts also gain an improved dynamic anti-drive design that makes it unfeasible to force any bolt open through mechanical or hydraulic means.

      Glass plate relocking device

Gain an added level of penetration protection through the addition of a glass plate to trigger the relockers. This pane of tempered glass shrouds the safe's lock. Any effort to punch, drill, torch, or in other ways access the lock maliciously results in a shattered plate. The instant this plate fractures, all attached relockers engage, sealing the safe off to all means of entry.

      Silent signal alert

Triggered by either a hidden button, or an alternate unlock entry code, safes equipped with the silent signal alert feature interface directly with your alarm or home automation system. With the silent signal in place, if the user is ever in a situation where the safe owner or operator is forced to open the safe against his or her will, the safe opens normally while at the same time an undetectable alert is sent to the homes monitoring system which in turn relays a message to the authorities or other security personnel, letting them know a holdup is currently taking place.

View a Review of the Top Rated Gun Safes Here

A No-Nonsense Comparison of the Top Freestanding Gun Safes of 2016

learn more

Burglary Protection Levels

At Brown Safe, protection has been, is, and always will be our number one priority. Our dedication to this core value has earned Brown Safe an industry-wide reputation for secure safes.

If you haven't browsed the "Protection Levels" pages within the "Safe Buying Guide" section, we highly suggest you do, as insufficient safe protection is the number one issue that is currently plaguing the safe industry.

Our starting safe models come with a half inch thick solid steel door and a quarter inch thick solid steel body. Even the top rated safes by the majority of safe builders don't offer this much protection.

Brown Safe's security ratings are detailed below. Each section describes the security features that come standard with each protection level we offer. Higher protection levels include all features from the previous level in addition to those listed.

We can also provide custom safe protection levels above those listed here... call us anytime as we're always happy to discuss a safe to fit your needs.

Optional protection features and security countermeasures are also listed below.

HD TL-15 Protection Level - Features

      1/2 inch solid steel door

It starts with steel. A safe is really only as strong as the material used to construct it.
And a safe's door is usually the weakest point of entry, as it is vulnerable to the standard methods of prying, cutting, and drilling to gain access to the interior of the safe. We negate this weakness by doubling the amount of door steel to a full half inch. The amount of steel in our base model provides substantially more burglary protection than the highest-rated safes by the majority of top selling manufacturers. For proof of this click here...

To learn more about protection ratings and the need for solid steel...click here

      1/4 inch thick solid steel body construction

All Brown Safes are constructed using a highly reinforced interlocking six-sided construction method. All wall, ceiling, and floor intersections are bound both inside and outside with high strength arc welds. This includes seamless welds that run along all outside seams creating a fully enclosed armor casing.
The five walls of this base unit are comprised of quarter inch solid plate steel. Again, this is substantially more protection than the majority of top selling safe models.
Click here to see a competitor comparison.

      Fire Protected for 90 min. at 1700°

The safe is made fire worthy by encasing all walls within 2 ½ inches of poured composite amalgamate encasement and the door of the safe receives a 2 inch layer of the composite material. While it's impossible to create a truly "fireproof" safe, this is the maximum level of fire protection available and provides an additional benefit by increasing the burglary shielding.
To learn more about the composite encasement process, click here.

      Flush door frame design with overbuilt spread resistant doorframe

The door frames on most safes are normally vulnerable to prying and side drilling. Not the case with Brown Safe door frames that contain excessive reinforcement in this area. Our safes incorporate a box in frame design that carries quadruple the body steel thickness at the door's frame.
In addition, the solid steel reinforced door interlocks within the door frame, creating a flush surface of solid steel that prevents the insertion of any pry bar or hydraulic leverage mechanism.
To top it off, a hardened steel internal crossbeam positioned at a 45 degree deflective angle runs along the entire door bolt frame to repel side door drill attack attempts.

      1 inch laminated, interlocked & double-welded door jamb

A solid steel tongue runs the entire length of the inner door parallel to the hinge. It locks in securely behind the door frame when the door is fully shut interlocking the door and frame tightly together. Once closed and engaged, this jamb coupled with the flush frame design and hardened locking bolts creates a door capable of withstanding extreme forms of attack for extended periods of time. With the inner  jamb in place, any effort spent cutting the doors exterior hinges wastes valuable time for the criminal while gaining them nothing.

      U. L. approved high security Group 2 lock

This commercial rated lock offers quick and convenient access with industrial grade protection. Built by one of the most respected lock makers in the safe world, this is a high use lock designed to provide a century's worth of reliable operation by jewelers and security personnel. This time tested design means ultimate home reliability for you.

      Ball bearing hard plate

This large hard plate rests between the door and the lock creating an additional barrier against penetration attacks. The superior bearing design is comprised of staggered rows of through-hardened ball bearings with a 58Rc hardness rating. The harsh angles and hardness of the bearings act to bind and seize drill bits while the free spinning nature of the bearings prevent a drill bit from gaining a solid drilling surface.

      Double anchor locking bolt carriage design

The locking bolts responsible for securing the door are fastened at two distinct locations along each bolt. Each paired set of solid steel anchors is spaced wide apart for additional support. The carriage anchors are held fast directly to the plate steel door by seamless welds.
This robust method of bolt carriage reinforcement is rarely seen in the safe industry. The majority of safe companies hold their bolts using a single thin carriage anchor, making the safe extremely vulnerable to pry bar and leverage based attacks. Click here for an example of this vulnerable bolt carriage design.

     1 inch thick hardened chrome locking bolts with anti-drive resistance

A solid safe requires solid bolt work, and our bolts deliver. Each case hardened locking bolt runs directly through the carriage anchors. While the locking bolts on most safes terminate just inside the door, each Brown Safe bolt runs over half the length of the door passing directly through the wide set bolt carriage anchors.
While in the locked position, each bolt is equipped with a passive anti-drive mechanism that blocks any attempts to mechanically force the bolt back through the use of wedges, taps, drills, and hammers.

Click here to learn about an unscrupulous "Large locking bolt" gimmick commonly employed by many major safe manufacturers to create the false impression of a robust safe.

      Five active and passive relocking devices

Hardened relocking bolts positioned at key locations throughout the safe act as an end all failsafe against intrusion. If an attempt is made to penetrate the lock, all relocker bolts instantly engage permanently pinning the door and its main bolts solidly in place and making it a near impossibility to get the door open within any reasonable remaining time the criminal may have.
Once relocker bolts have activated, the safe must be opened by a certified locksmith using blueprints supplied by Brown Safe specific to that safe. Without these detailed prints and instructions, it takes numerous hours to gain access to the safe, ensuring the safety of the precious contents within.

      Four 5/8 inch base anchor holes

To best ensure a solid floor connection, all Brown Safes are installed using four massive floor anchors. During installation, these long bolts run through anchor holes in the safes steel floor plate securing the safe firmly to the wood or concrete floor. When anchored to a concrete floor, the thief would have better luck attempting to uproot the entire concrete section around the safe rather than trying to pry the safe from its substantial purchase. When anchored to a wood floors support beam, it would be necessary to remove the entire section of floor including the beam in order to dislodge the safe. These are lengthy major operations that in most instances criminals have neither the time nor resources to perform.

HD Plus TL-30 Protection Level - Features

     HD Plus TL-30 safes have all the standard features of the HD TL-15 safes, plus the following features:

      1 inch solid steel door

With twice the amount of door steel as the TL-15, TL-30 safes present a substantial protection upgrade.

      1/2 inch solid steel body

The TL-30 also doubles the amount of body steel to a 1/2 inch of solid body thickness. The total protection offered by the increased door and wall thickness is essentially double that of the TL-15 rating.

      Ball and roller bearing hinges

Twice the steel means a door that's twice the weight. To better accommodate the added mass, we upgrade the door hinges to high load-bearing ball and roller hinges. The result is an exceptionally fortified door with silky smooth operation.

HD Ultra COM Protection Level - Features

     HD Ultra COM safes gain a half inch of Ballistic Armor in the door. This armor functions as a
     hardplate for the entire front area of the safe. To learn more about the capabilities of this armor,
      click here.

     HD Ultra COM safes have all the standard features of the previous protection levels, plus the following:

      1 inch solid steel door

HD Ultra safes weigh in with a door that carries twice the amount of door steel than the base rating, plus a layer of military-grade ballistic armor.

      1/2 of additional Ballistic Armor on door

The extreme strength of this added layer provides a substantial increase in protection from penetration attacks. The Ballistic Armor is cable of defeating multiple .50 caliber anti-sniper rounds, a feat no other steel we've tested is capable of performing.
Attempts to penetrate this armor with carbide tipped drill bits also prove fruitless as the armor hardness is an even match to that of the bits.

      1 inch solid steel body

The body of HD Ultra safes is also comprised of solid steel plates that are three times the thickness of the standard HD model.

Additional Protection Level Ratings

     We do offer additional non-standard protection levels above and beyond those shown here.

     Please contact us to discuss your specific requirements.

Optional Security Features

      Three-way bolt work with anti-drive

Both upper and lower locking bolts are added to further strengthen the door's ability to deny all attempts to wedge and pry the door open. All bolts also gain an improved dynamic anti-drive design that makes it unfeasible to force any bolt open through mechanical or hydraulic means.

      Glass plate relocking device

Gain an added level of penetration protection through the addition of a glass plate to trigger the relockers. This pane of tempered glass shrouds the safe's lock. Any effort to punch, drill, torch, or in other ways access the lock maliciously results in a shattered plate. The instant this plate fractures, all attached relockers engage, sealing the safe off to all means of entry.

      Silent signal alert

Triggered by either a hidden button, or an alternate unlock entry code, safes equipped with the silent signal alert feature interface directly with your alarm or home automation system. With the silent signal in place, if the user is ever in a situation where the safe owner or operator is forced to open the safe against his or her will, the safe opens normally while at the same time an undetectable alert is sent to the homes monitoring system which in turn relays a message to the authorities or other security personnel, letting them know a holdup is currently taking place.
